• safety type pressure gauge
  • 4.5”Phenolic aldehyde case hydraulic oil with adjustment pointer safety type pressure gauge



    Product name

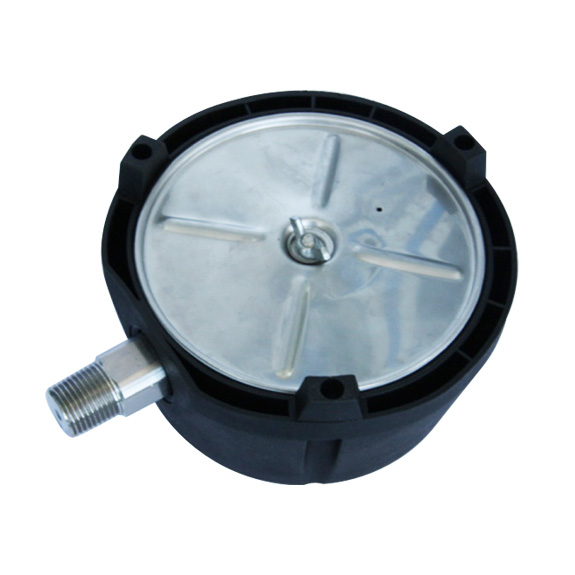

    4.5” Phenolic aldehyde case hydraulic oil with adjustment pointer safety type pressure gauge
    Model number
    YBFS-115A
    Diameter size
    115mm(4.5”)
    Case/cover
    phenolic aldehyde
    Window
    glass,safety glass etc.
    Connection
    stainless steel 316
    bottom
    Thread
    G/PT/NPT 1/2, M14*1.5,M20*1.5 etc.
    Bourdon tube
    stainless steel 316
    Movement
    stainless steel 304
    Dial plate
    aluminum
    Pressure range
    -0.1~100mpa
    Accuracy
    1.60%
    Liquid filling
    yes
    Liquid
    glycerol oil or silicone oil
    Design
    EN837-1;KS B 5305 etc.
