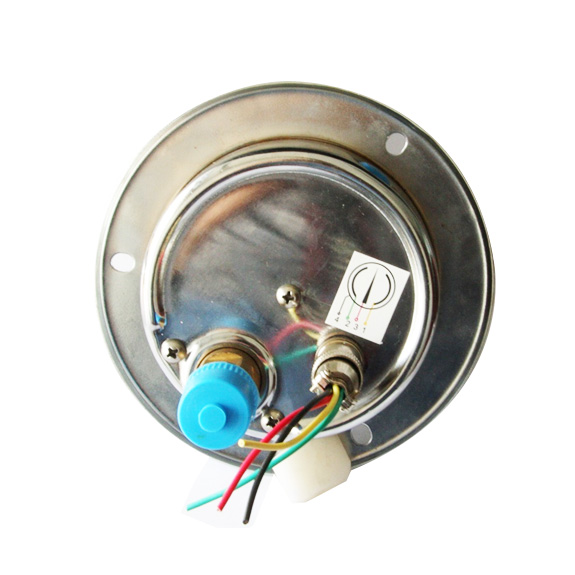

  • 100mm axial flange mount liquid type negative pressure normal electric manometer




    Product name
    100mm axial flange mount liquid type negative pressure normal electric manometer
    Model number
    YXTN-100BD
    Diameter size
    75mm,100mm,150mm etc.
    Case/cover
    stainless steel 304
    Window
    glass,safety glass etc.
    Connection
    brass
    bottom/back/back with flange etc.
    Thread
    G/PT/NPT 1/2, M14*1.5,M20*1.5 etc.
    Bourdon tube
    phosphor bronze
    Movement
    brass
    Dial plate
    aluminum
    Pressure range
    -0.1~100mpa
    Accuracy
    1.60%
    Liquid filling
    yes
    Liquid
    glycerol oil or silicone oil
    Design
    EN837-1;KS B 5305 etc.
