Product name
|

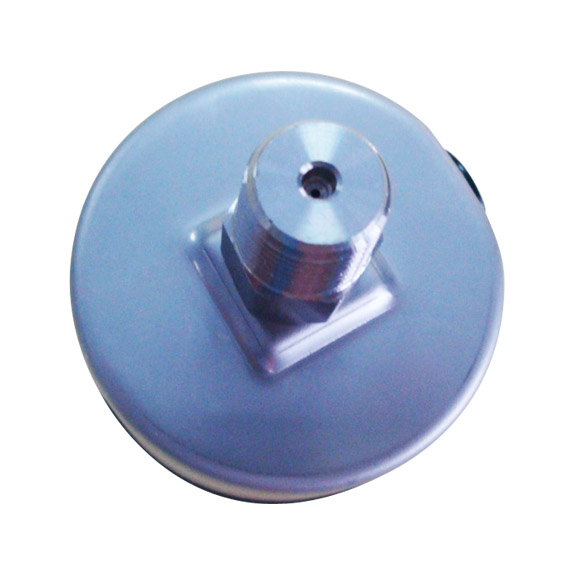

All stainless steel back connection glycerol oil or silicone oil master pressure gauge
|
|
Model number
|
YBF-50D
|
|
Diameter size
|
40mm,50mm,60mm,75mm,100mm,150mm,200mm,250mm etc.
|
|
Case/cover
|
stainless steel 304
|
|
Window
|
glass,safety glass etc.
|
|
Connection
|
stainless steel 316
bottom/back/back with clamp or flange etc.
|
|
Thread
|
G/PT/NPT 1/8 1/4 1/2, M10*1, M14*1.5,M20*1.5 etc.
|
|
Bourdon tube
|
stainless steel 316
|
|
Movement
|
stainless steel 304
|
|
Dial plate
|
aluminum
|
|
Pressure range
|
-0.1~100mpa
|
|
Accuracy
|
1.60%
|
|
Liquid filling
|
yes
|
|
Liquid
|
glycerol oil or silicone oil
|
|
Design
|
EN837-1;KS B 5305 etc.
|
