• stainless steel pressure gauge(with clamp or flange)
  • All stainless steel bottom connection pressure gauge



    Product name

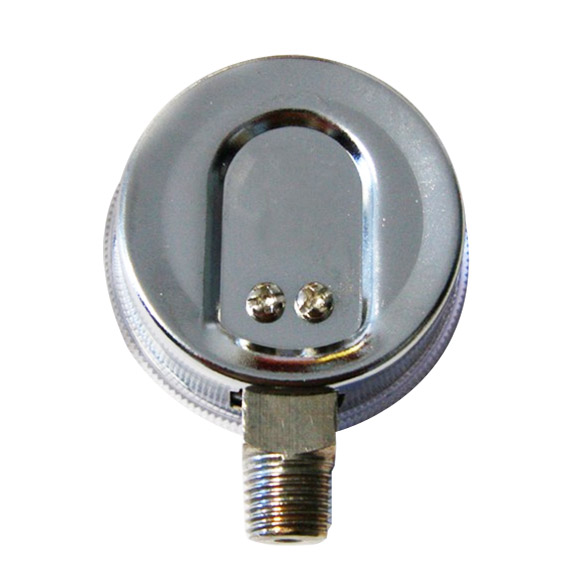

    All stainless steel bottom connection pressure gauge
    Model number
    YBF-50A
    Diameter size
    40mm,50mm,60mm,75mm,100mm,150mm,200mm,250mm etc.
    Case/cover
    stainless steel 304
    Window
    glass,safety glass etc.
    Connection
    stainless steel 316
    bottom/back/back with clamp or flange etc.
    Thread
    G/PT/NPT 1/8 1/4 1/2, M10*1, M14*1.5,M20*1.5 etc.
    Bourdon tube
    stainless steel 316
    Movement
    stainless steel 304
    Dial plate
    aluminum
    Pressure range
    -0.1~100mpa
    Accuracy
    1.60%
    Liquid filling
    yes
    Liquid
    glycerol oil or silicone oil
    Design
    EN837-1;KS B 5305 etc.
