Product name
|

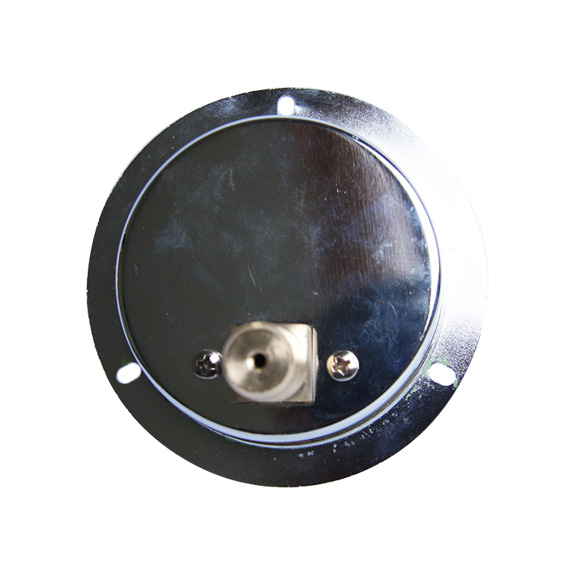

75mm lower back with flange low pressure any customized brand type bellows manometer
|
|
Model number
|
YE-75BD
|
|
Diameter size
|
60mm,75mm,100mm,150mm etc.
|
|
Case/cover
|
steel chromed
|
|
Window
|
glass,safety glass etc.
|
|
Connection
|
brass
bottom/back/back with clamp/flange etc.
|
|
Thread
|
G/PT/NPT 1/4 1/2, M10*1,M14*1.5,M20*1.5 etc.
|
|
Diaphragm
|
phosphor bronze
|
|
Movement
|
brass
|
|
Dial plate
|
aluminum
|
|
Pressure range
|
-0.1~0.1mpa
|
|
Accuracy
|
1.60%
|
|
Design
|
EN837-1;KS B 5305 etc.
|
